Detailed Description

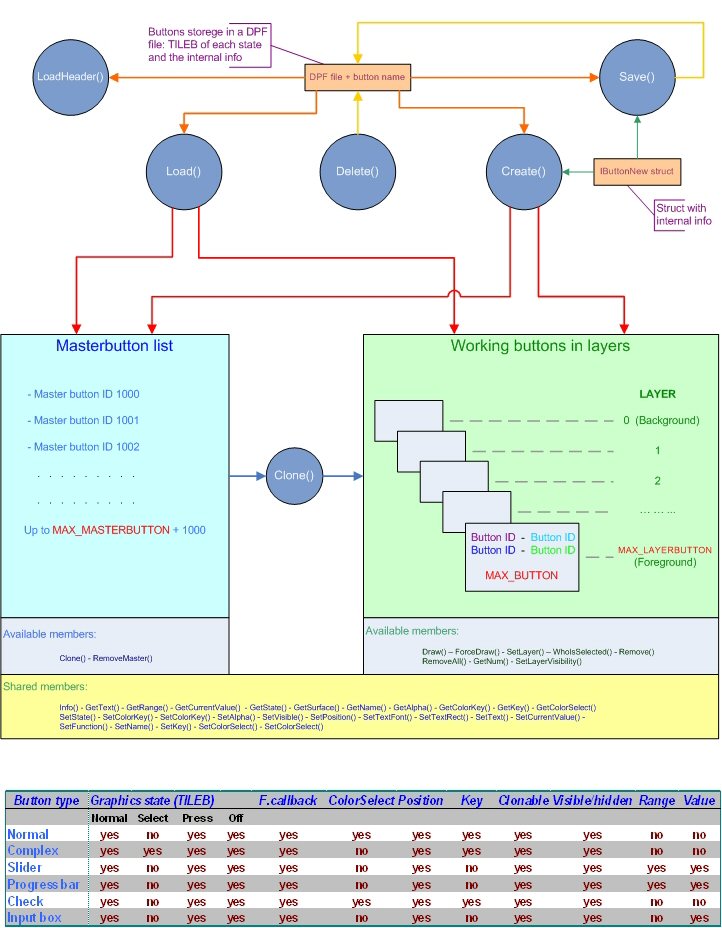

IButton is a multilayer GUI sytem with these type of buttons:
- normal
- complex
- check
- slider
- progress bar
- input box
It also supports:
- See below table or IButtonNew struct to a full list of properties
- alpha per surface and colorkey
- alpha per pixel
Internally, it uses CTile to store/load the images.
Currently it supports up to 8(MAX_LAYERBUTTON) layers with 32(MAX_BUTTON) maximum buttons per layer.
In addition, the maximum number of master button is 100(MAX_MASTERBUTTON).
We advice you to use EditorDPF to modify/add/delete tiles and its features.
CRM32Pro.Init() builds this interface and CRM32Pro.Quit() removes it.
- Created on 10 June 2001
- Last modified on 11 April 2012
Classes | |
| class | CRM32Pro_IButton |
| IButton. More... | |
| struct | IButtonNew |
| External button struct used to create new buttons. More... | |
Macros | |
| #define | B_ACTION 8 |
| Button state: click. | |
| #define | B_NORMAL 1 |
| Button state: normal. | |
| #define | B_OFF 16 |
| Button state: disabled. | |
| #define | B_PRESS 4 |
| Button state: pressed. | |
| #define | B_SELECT 2 |
| Button state: selected. | |
| #define | B_TYPE_CHECK 32 |
| Used in IButtonNew.type: to create a check button. | |
| #define | B_TYPE_COMPLEX 4 |
| Used in IButtonNew.type: to create a complex button. | |
| #define | B_TYPE_ICON 2 |
| Used in IButtonNew.type: deprecated, only for back compatibility.The same behaviour as NORMAL. | |
| #define | B_TYPE_INPUT 64 |
| Used in IButtonNew.type: to create an input box. | |
| #define | B_TYPE_NORMAL 1 |
| Used in IButtonNew.type: to create a normal button. | |
| #define | B_TYPE_PROGRESS 16 |
| Used in IButtonNew.type: to create a progress bar. | |
| #define | B_TYPE_SLIDER 8 |
| Used in IButtonNew.type: to create a slider. | |
Typedefs | |
| typedef struct IButtonNew | IButtonNew |
| External button struct used to create new buttons. | |
