Physics

Description

Physics module for 2D overlap tests, swept collisions, collision sets and kinematic helpers [v26.08.00].

Overview

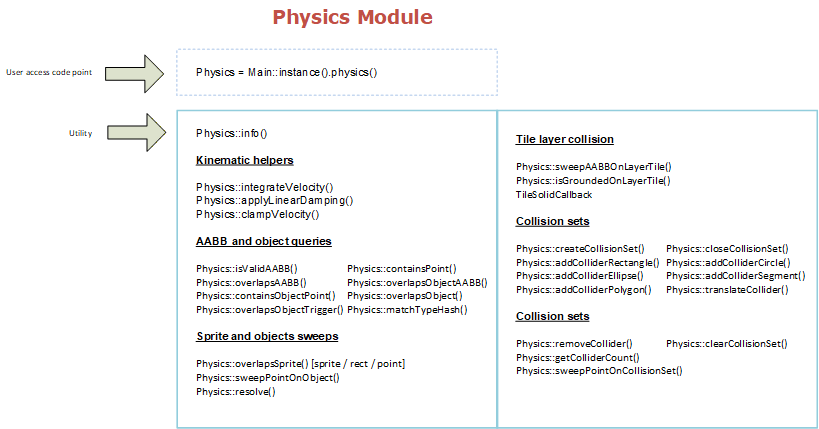

Physics provides broad-phase AABB checks, shape-aware and pixel-aware object overlap tests, swept point collision and simple motion helpers. It is a geometry service: it does not own a simulation world or apply forces.

Collision sets

Collision sets hold persistent world-space rectangles, circles, ellipses, segments and polygons. They accelerate swept collision through a spatial grid and return the collision-set and collider IDs in PhysicsSweepHit. Scene object layers compile opted-in c64scn_blocks_particles objects into this shared geometry for particle effects.

Threading

Public configuration, mutation and lifetime calls are main-thread operations. Particle workers can query a frozen collision set only during a synchronous particle update; do not modify or close a set while that update is running. See Threading conventions.

Best practices

Use AABB mode for broad gameplay checks, shape or pixel mode only when precision is required, and collision sets for repeated particle/world sweeps. Use Main::getLogicDeltaTime() for motion helpers.

Classes
struct	CRM64Pro::PhysicsSweepHit
	Result from a swept Physics collision query. More...
class	CRM64Pro::Physics
	Physics module class. More...

Enumerations
enum	CRM64Pro::ePhysicsCollisionMode : Uint32 { CRM64Pro::PCM_AABB = 0 , CRM64Pro::PCM_SHAPE , CRM64Pro::PCM_PIXEL }
	Collision mode for Physics overlap checks. More...

Enumeration Type Documentation

ePhysicsCollisionMode

enum CRM64Pro::ePhysicsCollisionMode : Uint32

Collision mode for Physics overlap checks.

Enumerator
PCM_AABB	Broad phase only: AABB overlap.
PCM_SHAPE	Broad + narrow: runs AABB precheck, then shape-aware overlap test.
PCM_PIXEL	Broad + narrow: runs AABB precheck, then pixel/coverage overlap test (falls back to shape where pixel source is unavailable).
