Detailed Description

v1.20 (30 April 2023)
The Archive module includes the Archive Manager and Archive Objects for managing the CDC files.

CDC format is an extensible and open data container definition based on data blocks. It was designed to be used with CRM64Pro GDK and is the successor of the old DPF format developed for CRM32Pro SDK.

The CDC only defines a minimum magic header(8 bytes) which contains the CDC implementation version and a set of methods that create the interface. These methods are shown on below table.

For the time being, there is only one implementation of the CDC format, it is called CDCv1.1 with the following features:

Header (256 bytes) for storing the copyright, creation and modification dates, etc.
Uses a variable size index for storing data blocks (minimum of 128). Thanks to the index usage, it is very fast to search, load, save or delete data blocks.
Detect IO data corruption or "file tampering" of the CDC file.
Data blocks are identified by a block type(can not start with "?SD_") and block name(can not start with "#").
Data blocks can be stored on raw mode, compressed (using zlib) or encrypted (using AES-256).
The CDC file can be secured using AES-256 disallowing the load of all data blocks without the valid password.
Maximum file size of 4GB.

CDC interface definition	CDC v1.1 implementation details
load()	At CDC loading time, it checks for IO data corruption.
save()	Automatically called after a new data block is successfully added.
blockAdd()	Add a new data block: if an identical (same type, name and payload) data block exists, does nothing or... if the block already exists (same type and name), before performing a "soft" deletion, it tries to overwrite the payload if fits of... if it is a new block, just add it
blockAddFile()	Add a file into a block. Follows the same rules as blockAdd(). The block name is the [directory]+filename+[extension] added and the block type is "C64_FILE".
blockLoad()	Load the data block. Note that "soft" deleted data blocks are not loaded.
blockSearch()	data block search is extremely fast due to the fixed index of the CDC.
blockAt()	Accessing to a random data blocks is extremely fast due to the fixed index of the CDC.
blockDelete()	Perform a "soft" deletion of the data block. It can not be loaded but physically is present.
blockUndelete()	Recover a "soft" deleted data block.
getNumberOfBlocks()	Get the number of data blocks.
getFragmentation()	Due to the "soft" deletion of data blocks and block overwritten feature, the CDC can be fragmented.
defrag()	Perform a physical deletion of the "soft" deleted data blocks and keep the file free of fragmentation.It also resizes the size of maximum data blocks.
secure()	Encrypt the index using AES-256 algorithm to disallow the access to the data blocks. Key size must be from 4 up to 32 bytes.
unSecure()	Decrypt the index using the valid password. It is very important to remember the password or there is no way to recover all data blocks.

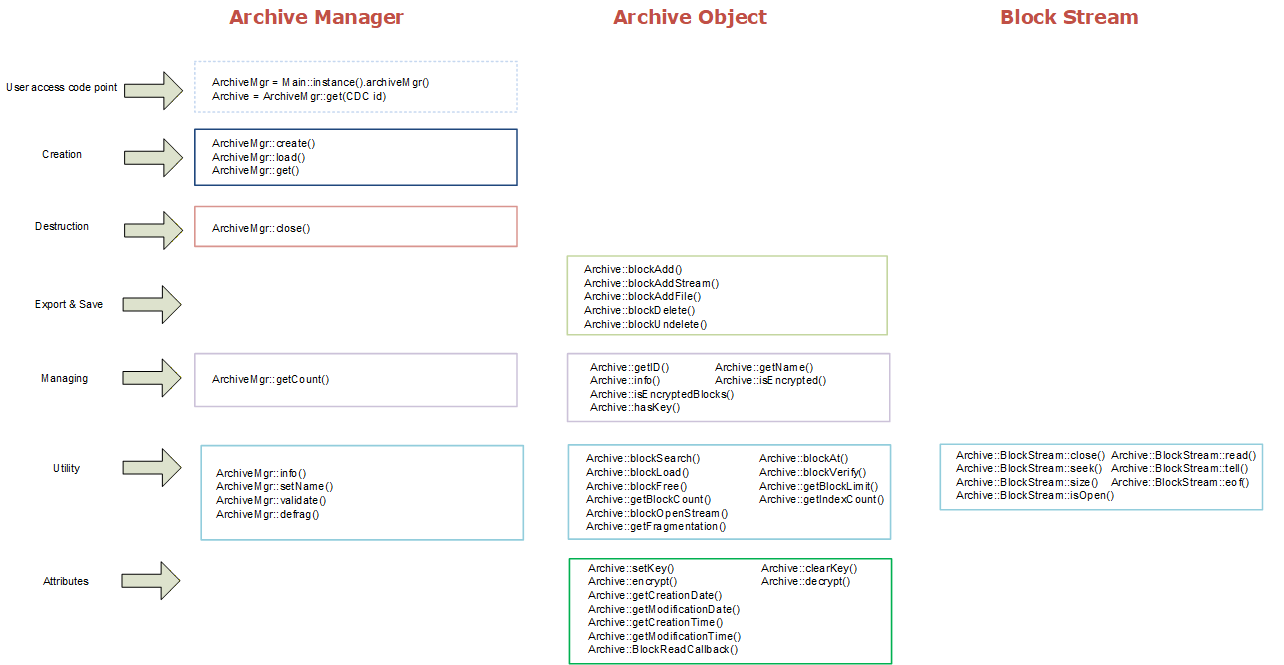

The Archive Manager encapsulates the CDC definition, CDCv1.1 implementation and some useful features for managing these files.

This is a sharing manager: it has the ability of sharing a CDC id to a group of owners when they request to open an already opened file based on the file path [directory]+file+[extension] as the key. When the last one of them closes the CDC id, it will be effectively closed.

Only a single instance of the Archive Manager exists which is created once Main is instantiated.
You can get a reference to this manager using Main::IArchiveMgr() method.

Note: The Archive Manager is automatically released when Main::Terminate() is called.
At this time, any resource still loaded, will be released avoding resource leaks.

Classes
class	CRM64Pro::Archive
	Archive Object class. More...

class	CRM64Pro::ArchiveMgr
	Archive Manager class. More...

Macros
#define	CDCv1_sPARAM1 64

#define	CDCv1_sPARAM2 16

Enumerations
enum	CRM64Pro::eArchiveBlockStore { CRM64Pro::ABS_RAW = 1 , CRM64Pro::ABS_COMPRESSED = 2 , CRM64Pro::ABS_CRYPTED = 3 }
	Archive block storing method. More...

Functions
Sint32	CRM64Pro::Archive::info (Sint32 iMode=0)
	Request CDC object information.

Sint32	CRM64Pro::Archive::getName (string &sName)
	Get the name.

Uint32	CRM64Pro::Archive::getID ()
	Get the ID.

Sint32	CRM64Pro::Archive::blockAdd (Block &myBlock)
	Add a data block.

Sint32	CRM64Pro::Archive::blockAddFile (const string &sFile, eArchiveBlockStore eABS=ABS_COMPRESSED)
	Add a file.

Sint32	CRM64Pro::Archive::blockDelete (Block &myBlock)
	Delete a data block.

Sint32	CRM64Pro::Archive::blockUndelete (Uint32 iBlock, Block &myBlock)
	Recover a deleted data block.

Sint32	CRM64Pro::Archive::blockSearch (Block &myBlock)
	Search for a given data block.

Sint32	CRM64Pro::Archive::blockAt (Uint32 iBlock, Block &myBlock)
	Access to the given data block position.

Sint32	CRM64Pro::Archive::blockLoad (Block &myBlock)
	Load a data block.

Sint32	CRM64Pro::Archive::blockLoadReleaseData (Block &myBlock)
	Free a loaded data block.

Uint32	CRM64Pro::Archive::getUsedBlocks ()
	Get the number of used data blocks.

Uint32	CRM64Pro::Archive::getMaxBlocks ()
	Get the number of maximum data blocks.

float	CRM64Pro::Archive::getFragmentation ()
	Get the fragmentation.

Sint32	CRM64Pro::Archive::secure (const unsigned char *myKey, Uint32 iKeySize)
	Secure the CDC.

Sint32	CRM64Pro::Archive::unSecure ()
	Unsecure a CDC file.

Sint32	CRM64Pro::ArchiveMgr::info (Sint32 iMode=0)
	Request Archive Manager information.

Sint32	CRM64Pro::ArchiveMgr::create (const string &sFile, Uint32 iNumBlocks=0)
	Create a new CDC file.

Sint32	CRM64Pro::ArchiveMgr::close (Sint32 idCDC)
	Close and destroy a CDC.

Sint32	CRM64Pro::ArchiveMgr::getNum ()
	Get number of loaded objects.

Sint32	CRM64Pro::ArchiveMgr::setName (Sint32, const string &)
	This method is not implemented.

Archive *	CRM64Pro::ArchiveMgr::get (Sint32 idCDC=0)
	Get a pointer to the CDC using its handler.

Sint32	CRM64Pro::ArchiveMgr::defrag (const string &sFile, Uint32 iNumBlocks=0)
	Defragment a CDC file.

Sint32	CRM64Pro::ArchiveMgr::load (const string &sFile, const unsigned char *myKey=nullptr, Uint32 iKeySize=0)
	Load a CDC file.

Sint32	CRM64Pro::CursorMgr::info (Sint32 iMode=0)
	Request Cursor Manager information.

Sint32	CRM64Pro::CursorMgr::create (const string &sName, Uint32 iVersion=10)
	Create a new cursor.

Sint32	CRM64Pro::CursorMgr::close (Sint32 idCur)
	Close and destroy a cursor.

Sint32	CRM64Pro::CursorMgr::getNum ()
	Get number of loaded objects.

Sint32	CRM64Pro::CursorMgr::setName (Sint32 idCur, const string &sName)
	Change the object name.

Cursor *	CRM64Pro::CursorMgr::get (Sint32 idCur)
	Get a pointer to the cursor using its handler.

Sint32	CRM64Pro::CursorMgr::select (Sint32 idCur)
	Select a mouse cursor.

Sint32	CRM64Pro::CursorMgr::getSelect ()
	Get selected mouse cursor.

Sint32	CRM64Pro::CursorMgr::show ()
	Make visible the selected mouse cursor.

Sint32	CRM64Pro::CursorMgr::hide ()
	Hide the mouse cursor.

Sint32	CRM64Pro::CursorMgr::setPosition (Sint32 iX, Sint32 iY, Sint32 idScreen=0)
	Set the mouse cursor position.

Sint32	CRM64Pro::CursorMgr::getPosition (Sint32 iX, Sint32 iY)
	Get the mouse cursor position.

Sint32	CRM64Pro::CursorMgr::getButtons ()
	Get the mouse buttons.

Sint32	CRM64Pro::CursorMgr::getButtonsPrev ()
	Get the previous mouse buttons.

Sint32	CRM64Pro::CursorMgr::getFocus ()
	Get the Screen id which currently has mouse focus.

Sint32	CRM64Pro::CursorMgr::child (Sint32 idCur)
	Create a child cursor dependant on the provided one(the parent).

Sint32	CRM64Pro::CursorMgr::load (const string &sFileCDC, const string &sName)
	Load a cursor stored in a CDC file.

Sint32	CRM64Pro::CursorMgr::load (const Sint32 idCDC, const string &sName)
	Load a cursor stored in a CDC file.

Sint32	CRM64Pro::CursorMgr::remove (Sint32 idCDC, const string &sName)
	Remove a cursor stored in a CDC file.

Macro Definition Documentation

◆ CDCv1_sPARAM1

#define CDCv1_sPARAM1 64

CDC v1.x: size of custom char array attribute 1

◆ CDCv1_sPARAM2

#define CDCv1_sPARAM2 16

CDC v1.x: size of custom char array attribute 2

Enumeration Type Documentation

◆ eArchiveBlockStore

enum CRM64Pro::eArchiveBlockStore

Archive block storing method.

Enumerator
ABS_RAW	Block is stored in raw mode.
ABS_COMPRESSED	Block is compressed and stored.
ABS_CRYPTED	Block is crypted and stored.

Function Documentation

◆ info() [1/3]

Sint32 CRM64Pro::Archive::info ( Sint32 iMode = 0 )

Request CDC object information.

For displaying the information, it uses the default log.

Parameters

iMode unused for the time being.

Returns: 0 on success or a negative error code on failure.

◆ getName()

Sint32 CRM64Pro::Archive::getName ( string & sName )

Get the name.

Parameters

sName a string containing the [directory] and the file name plus the .cdc extension.

Returns: 0 on success or a negative error code on failure.

◆ getID()

Uint32 CRM64Pro::Archive::getID ( )

Get the ID.

Returns: the object ID.

◆ blockAdd()

Sint32 CRM64Pro::Archive::blockAdd ( Block & myBlock )

Add a data block.

Parameters

myBlock filled Block struct, at least it needs pData and iSize.
Custom attributes depend on the CDC version.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockAddFile()

Sint32 CRM64Pro::Archive::blockAddFile	(	const string &	sFile,
		eArchiveBlockStore	eABS = `ABS_COMPRESSED`
	)

Add a file.

Parameters

sFile	string containing the [directory]+filename+[extension] to be added. Directory separators '\' and '/' are supported.
eABS	Check eArchiveBlockStore enum for further information. By default is set to ABS_COMPRESSED.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockDelete()

Sint32 CRM64Pro::Archive::blockDelete ( Block & myBlock )

Delete a data block.

Parameters

myBlock filled Block struct with custom attributes depending on the CDC version.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockUndelete()

Sint32 CRM64Pro::Archive::blockUndelete	(	Uint32	iBlock,
		Block &	myBlock
	)

Recover a deleted data block.

Parameters

iBlock	block index position from [0 to used_blocks - 1] which contains a deleted data block. Use getUsedBlocks() for getting the used_blocks.
myBlock	filled Block struct with custom attributes depending on the CDC version. pData must be nullptr. In case the block is recovered, myBlock struct will contain all its attributes but pData.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockSearch()

Sint32 CRM64Pro::Archive::blockSearch ( Block & myBlock )

Search for a given data block.

Parameters

myBlock filled Block struct with custom attributes depending on the CDC version.
In case the block is found, myBlock struct will contain all its attributes but pData.

Returns: [0 to used_blocks - 1] on success indicating the block index position or a negative error code on failure.
Use getUsedBlocks() for getting the used_blocks.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockAt()

Sint32 CRM64Pro::Archive::blockAt	(	Uint32	iBlock,
		Block &	myBlock
	)

Access to the given data block position.

Parameters

iBlock	block index position from [0 to used_blocks - 1]. Use getUsedBlocks() for getting the used_blocks.
myBlock	In case the block index position is found, myBlock struct will contain all its attributes but pData.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockLoad()

Sint32 CRM64Pro::Archive::blockLoad ( Block & myBlock )

Load a data block.

Parameters

myBlock filled Block struct with custom attributes depending on the CDC version.
pData must be nullptr.
In case the block is found, myBlock struct will contain all its attributes plus the pData loaded.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ blockLoadReleaseData()

Sint32 CRM64Pro::Archive::blockLoadReleaseData ( Block & myBlock )

Free a loaded data block.

Parameters

myBlock Block struct with pData loaded by blockLoad() method.

Returns: always return 0.

◆ getUsedBlocks()

Uint32 CRM64Pro::Archive::getUsedBlocks ( )

Get the number of used data blocks.

Returns: [0 to max_blocks] the number of used blocks(used_blocks).

◆ getMaxBlocks()

Uint32 CRM64Pro::Archive::getMaxBlocks ( )

Get the number of maximum data blocks.

Returns: a positive value with the maximum number(max_blocks) of blocks.

◆ getFragmentation()

float CRM64Pro::Archive::getFragmentation ( )

Get the fragmentation.

Returns: float value in [0-100] range expressed in percentage (the lower, the better as less fragmentation is present) or a negative error code on failure.

Note: Depending on the CDC version, the storing method can produce fragmentation when some blocks are deleted or not.; The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ secure()

Sint32 CRM64Pro::Archive::secure	(	const unsigned char *	myKey,
		Uint32	iKeySize
	)

Secure the CDC.

Parameters

myKey	unsigned char array of iKeySize containing the key.
iKeySize	the key size on bytes. They key size range in bytes for a CDC v1.1 must be from 4 up to 32.

Returns: 0 on success or a negative error code on failure.

Warning: Securing a CDC file and forgetting the key will cause the incapability to read its content.

Note: The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ unSecure()

Sint32 CRM64Pro::Archive::unSecure ( )

Unsecure a CDC file.

Returns: 0 on success or a negative error code on failure.

Note: The exact behaviour of this method depends on the CDC version. Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ info() [2/3]

Sint32 CRM64Pro::ArchiveMgr::info ( Sint32 iMode = 0 )

Request Archive Manager information.

For displaying the information, it uses the default log.

Parameters

iMode -1 for displaying only Manager information.
0 for displaying Manager and all Objects information. This is the default value.
idCDC for displaying Manager and given CDC id information.

Returns: 0 on success or a negative error code on failure.

◆ create() [1/2]

Sint32 CRM64Pro::ArchiveMgr::create	(	const string &	sFile,
		Uint32	iNumBlocks = `0`
	)

Create a new CDC file.

Parameters

sFile	string containing the [directory]+filename+[extension]. If it does not contain the extension .cdc, it is automatically added. Directory separators '\' and '/' are supported.
iNumBlocks	Maximum number of data blocks. The minimum is 256.

Returns: greater than 0 on success(the CDC id) or a negative error code on failure.

Note: If the provided file name already exists, it does nothing and return an error code.
Different CDC versions could be available but at creation time, we always use the newer one available although older ones can still be loaded.

◆ close() [1/2]

Sint32 CRM64Pro::ArchiveMgr::close ( Sint32 idCDC )

Close and destroy a CDC.

Parameters

idCDC 0 for closing all CDC files or the CDC id.
As the Archive Manager has the ability of sharing a CDC id, if the CDC file is shared, it will not be removed till the last owner call this method.

Returns: 0 on success or a negative error code on failure.

Note: If you forget to close a CDC file, it will be automatically closed once the GDK is terminated.

◆ getNum() [1/2]

Sint32 CRM64Pro::ArchiveMgr::getNum ( )

Get number of loaded objects.

Returns: the number of CDC files.

◆ setName() [1/2]

Sint32 CRM64Pro::ArchiveMgr::setName	(	Sint32	idCDC,
		const string &	sName
	)

This method is not implemented.

Parameters

idCDC	Unused
sName	Unused

Returns: Does not return any value.

◆ get() [1/2]

Archive * CRM64Pro::ArchiveMgr::get ( Sint32 idCDC = 0 )

Get a pointer to the CDC using its handler.

By default it returns the first CDC loaded.

Parameters

idCDC CDC id.

Returns: nullptr the CDC was not found.; A pointer to the CDC object.

◆ defrag()

Sint32 CRM64Pro::ArchiveMgr::defrag	(	const string &	sFile,
		Uint32	iNumBlocks = `0`
	)

Defragment a CDC file.

Parameters

sFile	string containing the [directory]+filename+[extension]. Directory separators '\' and '/' are supported.
iNumBlocks	Maximum number of data blocks. The minimum is 64 and by default, is set to 0 for keeping current max block number. It is used for resizing the maximum number of data blocks.

Returns: 0 on success or a negative error code on failure.

Note: Depending on the CDC version, the storing method can produce fragmentation when some blocks are deleted.
For defragmenting a CDC file, it must be closed and unsecured.; The exact behaviour of this method depends on the CDC version.
Please check the CDC implementation description on ArchiveMgr Detailed Description.

◆ load() [1/3]

Sint32 CRM64Pro::ArchiveMgr::load	(	const string &	sFile,
		const unsigned char *	myKey = `nullptr`,
		Uint32	iKeySize = `0`
	)

Load a CDC file.

The Archive Manager has the ability of sharing ids based on the file path [directory]+file+[extension] as the key, so before trying to load a new one, it checks if it is already loaded for sharing it.

Parameters

sFile	string containing the [directory]+filename+[extension]. Directory separators '\' and '/' are supported.
myKey	unsigned char array of iKeySize containing the key. It is only used when the CDC to be loaded is secured. Default value set to nullptr.
iKeySize	from 4 to 32. 0 for loading a CDC without key (default value).

Returns: greater than 0 on success(the CDC id) or a negative error code on failure.

◆ info() [3/3]

Sint32 CRM64Pro::CursorMgr::info ( Sint32 iMode = 0 )

Request Cursor Manager information.

For displaying the information, it uses the default log.

Parameters

iMode -1 for displaying only Manager information.
0 for displaying Manager and all Objects information. This is the default value.
idCursor for displaying Manager and given Cursor id information.

Returns: 0 on success or a negative error code on failure.

◆ create() [2/2]

Sint32 CRM64Pro::CursorMgr::create	(	const string &	sName,
		Uint32	iVersion = `10`
	)

Create a new cursor.

This method will create an empty cursor (no image assigned), use Cursor::assignImage() method for assigning the image.

Parameters

sName	The name to give to the cursor e.g. 'myCursor'. The object name must be unique and with a maximum size of 64 characters or will be truncated.
iVersion	Cursor version. 10 means 1.0 which is the only version supported (as of now). v1.0 is set by default.

Returns: greater than 0 on success(the Cursor id) or a negative error code on failure.

Note: If the provided name already exists, it does nothing and return an error code.

◆ close() [2/2]

Sint32 CRM64Pro::CursorMgr::close ( Sint32 idCur )

Close and destroy a cursor.

Parameters

idCur 0 for closing all cursors or the Cursor id.
Stand-alone and child cursors can be closed but parent ones, can not as they have at least one dependency(a child).

Returns: 0 on success or a negative error code on failure.

Note: If you forget to close a Cursor, it will be automatically closed once the GDK is terminated.

◆ getNum() [2/2]

Sint32 CRM64Pro::CursorMgr::getNum ( )

Get number of loaded objects.

Returns: the number of cursors.

◆ setName() [2/2]

Sint32 CRM64Pro::CursorMgr::setName	(	Sint32	idCur,
		const string &	sName
	)

Change the object name.

Parameters

idCur	Cursor id.
sName	The name to give to the cursor e.g. 'myCursor'. The object name must be unique and with a maximum size of 64 characters or will be truncated.

Returns: 0 on success or a negative error code on failure.

Note: The image name associated to this cursor will be internally modified: starts with the reserved character '#' + an internal code + the cursor name.

◆ get() [2/2]

Cursor * CRM64Pro::CursorMgr::get ( Sint32 idCur )

Get a pointer to the cursor using its handler.

Parameters

idCur Cursor id.

Returns: nullptr the cursor was not found.; A pointer to the cursor object.

◆ select()

Sint32 CRM64Pro::CursorMgr::select ( Sint32 idCur )

Select a mouse cursor.

Parameters

idCur Cursor id. It also supports any SDL_SystemCursor.

Returns: 0 on success or a negative error code on failure.

Note: Cursors are dinamically build on the first time they are selected. You can use Cursor::build() for building them in advance.

◆ getSelect()

Sint32 CRM64Pro::CursorMgr::getSelect ( )

Get selected mouse cursor.

Returns: Current selected Cursor id.

◆ show()

Sint32 CRM64Pro::CursorMgr::show ( )

Make visible the selected mouse cursor.

Returns: 0 on success or a negative error code on failure.

◆ hide()

Sint32 CRM64Pro::CursorMgr::hide ( )

Hide the mouse cursor.

Returns: 0 on success or a negative error code on failure.

◆ setPosition()

Sint32 CRM64Pro::CursorMgr::setPosition	(	Sint32	iX,
		Sint32	iY,
		Sint32	idScreen = `0`
	)

Set the mouse cursor position.

Parameters

iX	integer with x position.
iY	integer with y position.
idScreen	Screen id. By default it is set to 0 for using the screen with the mouse focus.

Returns: 0 on success or a negative error code on failure.

◆ getPosition()

Sint32 CRM64Pro::CursorMgr::getPosition	(	Sint32 *	iX,
		Sint32 *	iY
	)

Get the mouse cursor position.

Parameters

iX	an integer pointer filled in with X mouse position. If nullptr is passed, the method ignores the retrieving of this value.
iY	an integer pointer filled in with Y mouse position. If nullptr is passed, the method ignores the retrieving of this value.

Returns: 0 on success or a negative error code on failure.

Note: The mouse cursor position is internally updated in Main::update() each Logic Frame update.

◆ getButtons()

Sint32 CRM64Pro::CursorMgr::getButtons ( )

Get the mouse buttons.

Returns: 32 bit button bitmask of the current button state.

Note: The mouse buttons are internally updated in Main::update() each Logic Frame update. The button bitmask can be tested using the SDL_BUTTON(X) macros where X is generally 1 for the left, 2 for middle, 3 for the right button.

◆ getButtonsPrev()

Sint32 CRM64Pro::CursorMgr::getButtonsPrev ( )

Get the previous mouse buttons.

Returns: 32 bit button bitmask of the previous(the last Logic Frame) button state.

Note: The mouse buttons are internally updated in Main::update() each Logic Frame update. The button bitmask can be tested using the SDL_BUTTON(X) macros where X is generally 1 for the left, 2 for middle, 3 for the right button.

◆ getFocus()

Sint32 CRM64Pro::CursorMgr::getFocus ( )

Get the Screen id which currently has mouse focus.

Returns: 0 or greater on success(the Screen id) or a negative error code on failure.

Note: For getting the keyboard focus you can use Main::getKeyboardFocus() method.

◆ child()

Sint32 CRM64Pro::CursorMgr::child ( Sint32 idCur )

Create a child cursor dependant on the provided one(the parent).

A child cursor uses the attributes of the parent and creates also a parent child image for having different attributes, for the time being, only different Hotspots as the colorkey can not be modified on child images and other image attributes are not supported on the SDL cursors system.

Parameters

idCur parent Cursor id.
If the provided cursor is a child, internally it will redirect this request to the parent in order to create the new child.

Returns: greater than 0 on success(the Cursor id) or a negative error code on failure.

Note: The child use the parent's name.

◆ load() [2/3]

Sint32 CRM64Pro::CursorMgr::load	(	const string &	sFileCDC,
		const string &	sName
	)

Load a cursor stored in a CDC file.

Parameters

sFileCDC	string containing the [directory]+filename. Directory separators '\' and '/' are supported.
sName	string with the cursor name (maximum size of 64 characters). If the Cursor is already created, this method will call child() for creating a child.

Returns: greater than 0 on success(the Cursor id) or a negative error code on failure.

◆ load() [3/3]

Sint32 CRM64Pro::CursorMgr::load	(	const Sint32	idCDC,
		const string &	sName
	)

Load a cursor stored in a CDC file.

Parameters

idCDC	CDC id.
sName	string with the cursor name (maximum size of 64 characters). If the Cursor is already created, this method will call child() for creating a child.

Returns: greater than 0 on success(the Cursor id) or a negative error code on failure.

◆ remove()

Sint32 CRM64Pro::CursorMgr::remove	(	Sint32	idCDC,
		const string &	sName
	)

Remove a cursor stored in a CDC file.

Parameters

idCDC	CDC id.
sName	string with the cursor name (maximum size of 64 characters).

Returns: greater than 0 on success or a negative error code on failure.

Note: The cursor must be closed before trying to remove it from the CDC.

Detailed Description

Classes

Macros

Enumerations

Functions

Macro Definition Documentation

◆ CDCv1_sPARAM1

◆ CDCv1_sPARAM2

Enumeration Type Documentation

◆ eArchiveBlockStore

Function Documentation

◆ info() [1/3]

◆ getName()

◆ getID()

◆ blockAdd()

◆ blockAddFile()

◆ blockDelete()

◆ blockUndelete()

◆ blockSearch()

◆ blockAt()

◆ blockLoad()

◆ blockLoadReleaseData()

◆ getUsedBlocks()

◆ getMaxBlocks()

◆ getFragmentation()

◆ secure()

◆ unSecure()

◆ info() [2/3]

◆ create() [1/2]

◆ close() [1/2]

◆ getNum() [1/2]

◆ setName() [1/2]

◆ get() [1/2]

◆ defrag()

◆ load() [1/3]

◆ info() [3/3]

◆ create() [2/2]

◆ close() [2/2]

◆ getNum() [2/2]

◆ setName() [2/2]

◆ get() [2/2]

◆ select()

◆ getSelect()

◆ show()

◆ hide()

◆ setPosition()

◆ getPosition()

◆ getButtons()

◆ getButtonsPrev()

◆ getFocus()

◆ child()

◆ load() [2/3]

◆ load() [3/3]

◆ remove()
