Tutorial 11: 2D lightmaps

Overview

This tutorial introduces the GFX 2D lighting pass. It first draws the scene, then builds and applies a lightmap from ambient color, three light types and optional rectangle, circle and segment occluders.

The lights demonstrate a candle animation, a mouse-controlled point light and a spotlight positioned above the segment so its shadow is visible.

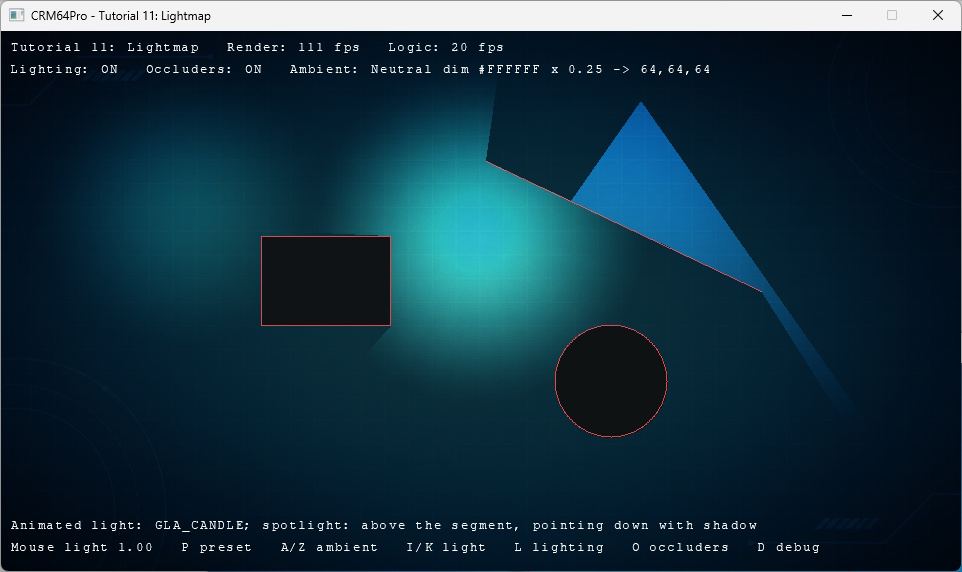

Final result

CRM64Pro Tutorial 11 lightmap

Runtime controls

• Mouse: Move the warm point light.
• L: Enable or disable the lightmap pass.
• O: Enable or disable occluders.
• P: Cycle ambient presets.
• A / Z: Increase or decrease ambient intensity.
• I / K: Increase or decrease mouse-light intensity.
• D: Show or hide the debug window.
• Grave key: Show or hide the built-in console.
• Q or ESC: Exit the tutorial.

Prerequisites

• CRM64Pro GDK installed and configured with a supported C++17 compiler.
• Tutorial package downloaded and fully extracted, preserving its folder structure.
• Run Tutorials 02 and 04 first so Tutorial.cdc contains the background and cursor resources.
• A renderer supported by the GFX lightmap implementation.

What you will learn

• Start and finish a lightmap pass with GFX::beginLighting() and GFX::endLighting().
• Convert an ambient color and intensity into lightmap bytes.
• Add rectangle, circle and segment light occluders.
• Configure point and spot lights with GFXLight.
• Animate light color, intensity and radius with GLA_CANDLE.
• Accumulate return values while always finishing an active lightmap pass.
• Draw diagnostics and the HUD after lighting is applied.

Step by step

1. Define ambient presets

Each preset combines a base RGB color with its recommended starting intensity.

static const AmbientPreset vAmbientPresets[] =
{
    { "Daylight",      255, 255, 255, 1.00f },
    { "Neutral dim",   255, 255, 255, 0.25f },
    { "Dusk",          154, 168, 200, 0.45f },
    { "Moonlight",     113, 136, 184, 0.20f },
    { "Warm interior", 208, 144,  88, 0.20f },
    { "Torch",          58,  32,   8, 0.08f },
    { "Blackout",        0,   0,   0, 0.00f }
};

2. Convert ambient values safely

The ambient multiplication uses floats. Clamp and round each result before passing it to the byte-based beginLighting() interface.

// Convert a light value to a valid colour byte.
static Uint8 lightByte(float fValue)
{
    if(fValue <= 0.0f) return 0;
    if(fValue >= 255.0f) return 255;
    return static_cast<Uint8>(fValue + 0.5f);
}

3. Draw the scene before lighting

The shapes are normal scene content. Lighting is accumulated only after these objects have been rendered.

// Draw the scene objects lit by the lightmap.
static void renderSceneProps(GFX& mGFX)
{
    mGFX.rectFilled(260, 205, 390, 295, 62, 76, 88, 255);
    mGFX.rect(260, 205, 390, 295, 210, 220, 230, 255);
    mGFX.circleFilled(610, 350, 56, 56, 72, 74, 255);
    mGFX.circle(610, 350, 56, 210, 220, 230, 255);
    mGFX.line(485, 130, 760, 260, 210, 220, 230, 255);
}

4. Begin with ambient light

When lighting is disabled, leave the already-rendered scene unchanged. Otherwise begin a lightmap using the active ambient preset.

if(!rState.bLighting) return true;

const AmbientPreset& Ambient = vAmbientPresets[rState.iAmbientPreset];
bool bOk = mGFX.beginLighting(lightByte(Ambient.iR * rState.fAmbientIntensity),
    lightByte(Ambient.iG * rState.fAmbientIntensity), lightByte(Ambient.iB * rState.fAmbientIntensity));
if(!bOk) return false;

5. Add matching occluders

The occluder geometry matches the visible scene shapes. Accumulating the result allows every operation, including endLighting(), to run after a successful begin.

if(rState.bOccluders)
{
    bOk = mGFX.addLightOccluderRect(260, 205, 390, 295) && bOk;
    bOk = mGFX.addLightOccluderCircle(610, 350, 56) && bOk;
    bOk = mGFX.addLightOccluderSegment(485, 130, 760, 260) && bOk;
}

6. Configure an animated candle

GFXLight defaults let the tutorial set only relevant fields. GLA_CANDLE varies intensity, blends toward a secondary color and changes radius using a stable animation ID.

GFXLight CandleLight;
CandleLight.fX = 175.0f;
CandleLight.fY = 170.0f;
CandleLight.fRadius = 165.0f;
CandleLight.iColor = 0xFFF0B0FF;
CandleLight.fIntensity = 0.52f;
CandleLight.bUseOccluders = rState.bOccluders;
CandleLight.eAnimation = GLA_CANDLE;
CandleLight.fAnimationRate = 8.0f;
CandleLight.fAnimationAmount = 0.32f;
CandleLight.iSecondaryColor = 0xE85018FF;
CandleLight.fAnimationRadiusAmount = 0.10f;
CandleLight.iAnimationID = 1;
bOk = mGFX.drawLight(CandleLight) && bOk;

7. Add a mouse-controlled point light

The second GFXLight follows the cursor and exposes its intensity through the runtime controls.

GFXLight MouseLight;
MouseLight.fX = rState.fMouseX;
MouseLight.fY = rState.fMouseY;
MouseLight.fRadius = 180.0f;
MouseLight.iColor = 0xFFDCA0FF;
MouseLight.fIntensity = rState.fMouseIntensity;
MouseLight.bUseOccluders = rState.bOccluders;
bOk = mGFX.drawLight(MouseLight) && bOk;

8. Add a spotlight and finish

A direction of 90 degrees points downward. The 70-degree cone crosses the segment occluder, making its cast shadow easy to see. Always finish the active lightmap pass.

GFXLight SpotLight;
SpotLight.fX = 640.0f;
SpotLight.fY = 70.0f;
SpotLight.fRadius = 430.0f;
SpotLight.fDirection = 90.0f;
SpotLight.fAngle = 70.0f;
SpotLight.iColor = 0xB0D8FFFF;
SpotLight.fIntensity = 0.65f;
SpotLight.bUseOccluders = rState.bOccluders;
bOk = mGFX.drawLight(SpotLight) && bOk;
bOk = mGFX.endLighting() && bOk;
return bOk;

9. Keep diagnostics outside the pass

After the lightmap is applied, draw any failure notice, visible occluder outlines and the HUD so they are not darkened.

if(!renderLighting(mGFX, rState))
{
    mGFX.rectFilled(10, 58, 330, 78, 160, 0, 0, 220);
    renderText(pFont, 14, 60, "Lightmap pass failed");
}

if(rState.bOccluders)
{
    mGFX.rect(260, 205, 390, 295, 255, 80, 80, 210);
    mGFX.circle(610, 350, 56, 255, 80, 80, 210);
    mGFX.line(485, 130, 760, 260, 255, 80, 80, 210);
}

renderHUD(pFont, rState);

10. Change ambient and light intensity

The controls cycle presets and clamp both adjustable intensity values to the 0.0-1.0 range.

else if(event.key.key == SDLK_P)
{
    state.iAmbientPreset = (state.iAmbientPreset + 1) % iAmbientPresetCount;
    state.fAmbientIntensity = vAmbientPresets[state.iAmbientPreset].fIntensity;
}
else if(event.key.key == SDLK_A)
{
    state.fAmbientIntensity += 0.05f;
    if(state.fAmbientIntensity > 1.0f) state.fAmbientIntensity = 1.0f;
}
else if(event.key.key == SDLK_Z)
{
    state.fAmbientIntensity -= 0.05f;
    if(state.fAmbientIntensity < 0.0f) state.fAmbientIntensity = 0.0f;
}

11. Select the cursor and finish cleanly

Use the cursor's existing hotspot. A quit request exits before another state update.

mLog.msg(LL_INFO, "  Select cursor ... ");
if(mC64.cursorMgr().select(state.idCursor) < 0 || !mC64.cursorMgr().show())
{
    logTaskFailed(mLog);
    Main::terminate();
    return -1;
}
logTaskOk(mLog);

if(!bRunning) break;
state.fMouseX = mC64.cursorMgr().getX();
state.fMouseY = mC64.cursorMgr().getY();
state.iCurrentRenderRate = static_cast<Sint32>(mC64.timer().getCurrentRFR());
state.iCurrentLogicRate = static_cast<Sint32>(mC64.timer().getCurrentLFR());
updateLogic(state);

Complete source

The tutorial source is authoritative. The following listing is included directly from validation/source/Tutorial_11_Lightmap.cpp.

/* ----------------------------------------------------------------------
    CRM64Pro GDK - Roberto Prieto
    Copyright (C) 2013-2026 MegaStorm Systems

    This software is provided 'as-is', without any express or implied
    warranty. In no event will the authors be held liable for any damages
    arising from the use of this software.

    Permission is granted to anyone to use this software for any purpose,
    including commercial applications, and to alter it and redistribute it
    freely, subject to the following restrictions:

    1. The origin of this software must not be misrepresented; you must not
       claim that you wrote the original software.
    2. Altered source versions must be plainly marked as such, and must not be
       misrepresented as being the original software.
    3. This notice may not be removed or altered from any source distribution.

------------------------------------------------------------------------
                        Tutorial 11: Lightmap
------------------------------------------------------------------------

    Overview:
    This tutorial introduces the GFX 2D lightmap pass. It draws a scene first,
    accumulates lights and occluders into a lightmap, then applies the result
    over the rendered scene.

    Key concepts:
    - Start a lightmap pass with GFX::beginLighting().
    - Add rectangle, circle and segment occluders.
    - Draw point lights and spot lights.
    - Use GFXLight for candle animation and color/radius changes.
    - Finish the pass with GFX::endLighting().
    - Keep HUD rendering outside the lighting pass.

    Controls:
    - Mouse: Move the warm point light.
    - L: Toggle lightmap pass.
    - O: Toggle occluders.
    - P: Cycle ambient presets.
    - A / Z: Change ambient intensity.
    - I / K: Change mouse-light intensity.
    - D: Toggle debug window.
    - Grave: Toggle console.
    - Q / ESC: Quit.

    Loop order:
    - Process input events.
    - Run one fixed logic update.
    - Render the scene.
    - Render and apply the lightmap.
    - Render the HUD.
------------------------------------------------------------------------ */

#include "CRM64Pro.h"
#include "RunParameter.h"

using namespace CRM64Pro;

#ifdef CRM64PRO_PLATFORM_WINDOWS
#define OUTPUTDIR "Win64/"
#elif defined(CRM64PRO_PLATFORM_LINUX)
#define OUTPUTDIR "Linux/"
#elif defined(CRM64PRO_PLATFORM_MACOS)
#define OUTPUTDIR "macOS/"
#endif

#define RESOURCE_BG_CDC_NAME "Tutorial_bg"
#define RESOURCE_CURSOR_CDC_NAME "Tutorial_cursor"
#define OUTPUT_CDC OUTPUTDIR"Tutorial.cdc"

static const Sint32 iLogicRate = 20;
static const Sint32 iRenderRate = 0;
static const Sint32 iScreenW = 960;
static const Sint32 iScreenH = 540;

struct AmbientPreset
{
    const char* szName;
    Uint8 iR, iG, iB;
    float fIntensity;
};

static const AmbientPreset vAmbientPresets[] =
{
    { "Daylight",      255, 255, 255, 1.00f },
    { "Neutral dim",   255, 255, 255, 0.25f },
    { "Dusk",          154, 168, 200, 0.45f },
    { "Moonlight",     113, 136, 184, 0.20f },
    { "Warm interior", 208, 144,  88, 0.20f },
    { "Torch",          58,  32,   8, 0.08f },
    { "Blackout",        0,   0,   0, 0.00f }
};

static const Sint32 iAmbientPresetCount = static_cast<Sint32>(sizeof(vAmbientPresets) / sizeof(vAmbientPresets[0]));

struct TutorialState
{
    Sint32 idBgImage = -1;
    Sint32 idCursor = -1;
    Sint32 idBuiltInFont = -1;
    Sint32 idDebugWindow = -1;
    float fMouseX = iScreenW * 0.5f;
    float fMouseY = iScreenH * 0.5f;
    Sint32 iAmbientPreset = 1;
    float fAmbientIntensity = 0.25f;
    float fMouseIntensity = 1.0f;
    Sint32 iCurrentRenderRate = 0;
    Sint32 iCurrentLogicRate = 0;
    Sint32 iLogicFrames = 0;
    bool bLighting = true;
    bool bOccluders = true;
};

// Record a successful tutorial task.
static void logTaskOk(Log& mLog)
{
    mLog.msg(LL_DEBUG, "OK\n");
}

// Record a failed tutorial task.
static void logTaskFailed(Log& mLog, Sint32 iCode)
{
    mLog.msg(LL_ERROR, "FAILED (Code %d)\n", iCode);
}

// Record a failed tutorial task.
static void logTaskFailed(Log& mLog)
{
    mLog.msg(LL_ERROR, "FAILED\n");
}

// Convert a light value to a valid colour byte.
static Uint8 lightByte(float fValue)
{
    if(fValue <= 0.0f) return 0;
    if(fValue >= 255.0f) return 255;
    return static_cast<Uint8>(fValue + 0.5f);
}

// Update the tutorial state for the current frame.
static void updateLogic(TutorialState& rState)
{
    rState.iLogicFrames++;
}

// Draw text at the requested screen position.
static void renderText(Font* pFont, Sint32 iX, Sint32 iY, const char* szText)
{
    if(!pFont) return;
    pFont->setPosition(iX, iY);
    pFont->render(szText);
}

// Draw the scene objects lit by the lightmap.
static void renderSceneProps(GFX& mGFX)
{
    mGFX.rectFilled(260, 205, 390, 295, 62, 76, 88, 255);
    mGFX.rect(260, 205, 390, 295, 210, 220, 230, 255);
    mGFX.circleFilled(610, 350, 56, 56, 72, 74, 255);
    mGFX.circle(610, 350, 56, 210, 220, 230, 255);
    mGFX.line(485, 130, 760, 260, 210, 220, 230, 255);
}

// Draw and apply the lightmap.
static bool renderLighting(GFX& mGFX, TutorialState& rState)
{
    if(!rState.bLighting) return true;

    const AmbientPreset& Ambient = vAmbientPresets[rState.iAmbientPreset];
    bool bOk = mGFX.beginLighting(lightByte(Ambient.iR * rState.fAmbientIntensity),
        lightByte(Ambient.iG * rState.fAmbientIntensity), lightByte(Ambient.iB * rState.fAmbientIntensity));
    if(!bOk) return false;

    if(rState.bOccluders)
    {
        bOk = mGFX.addLightOccluderRect(260, 205, 390, 295) && bOk;
        bOk = mGFX.addLightOccluderCircle(610, 350, 56) && bOk;
        bOk = mGFX.addLightOccluderSegment(485, 130, 760, 260) && bOk;
    }

    GFXLight CandleLight;
    CandleLight.fX = 175.0f;
    CandleLight.fY = 170.0f;
    CandleLight.fRadius = 165.0f;
    CandleLight.iColor = 0xFFF0B0FF;
    CandleLight.fIntensity = 0.52f;
    CandleLight.bUseOccluders = rState.bOccluders;
    CandleLight.eAnimation = GLA_CANDLE;
    CandleLight.fAnimationRate = 8.0f;
    CandleLight.fAnimationAmount = 0.32f;
    CandleLight.iSecondaryColor = 0xE85018FF;
    CandleLight.fAnimationRadiusAmount = 0.10f;
    CandleLight.iAnimationID = 1;
    bOk = mGFX.drawLight(CandleLight) && bOk;
    GFXLight MouseLight;
    MouseLight.fX = rState.fMouseX;
    MouseLight.fY = rState.fMouseY;
    MouseLight.fRadius = 180.0f;
    MouseLight.iColor = 0xFFDCA0FF;
    MouseLight.fIntensity = rState.fMouseIntensity;
    MouseLight.bUseOccluders = rState.bOccluders;
    bOk = mGFX.drawLight(MouseLight) && bOk;
    GFXLight SpotLight;
    SpotLight.fX = 640.0f;
    SpotLight.fY = 70.0f;
    SpotLight.fRadius = 430.0f;
    SpotLight.fDirection = 90.0f;
    SpotLight.fAngle = 70.0f;
    SpotLight.iColor = 0xB0D8FFFF;
    SpotLight.fIntensity = 0.65f;
    SpotLight.bUseOccluders = rState.bOccluders;
    bOk = mGFX.drawLight(SpotLight) && bOk;
    bOk = mGFX.endLighting() && bOk;
    return bOk;
}

// Draw the tutorial status information.
static void renderHUD(Font* pFont, TutorialState& rState)
{
    if(!pFont) return;

    char szLine[180];
    snprintf(szLine, sizeof(szLine), "Tutorial 11: Lightmap   Render: %d fps   Logic: %d fps",
        rState.iCurrentRenderRate, rState.iCurrentLogicRate);
    renderText(pFont, 10, 10, szLine);

    const AmbientPreset& Ambient = vAmbientPresets[rState.iAmbientPreset];
    snprintf(szLine, sizeof(szLine), "Lighting: %s   Occluders: %s   Ambient: %s #%02X%02X%02X x %.2f -> %d,%d,%d",
        rState.bLighting ? "ON" : "OFF", rState.bOccluders ? "ON" : "OFF", Ambient.szName,
        Ambient.iR, Ambient.iG, Ambient.iB, rState.fAmbientIntensity,
        lightByte(Ambient.iR * rState.fAmbientIntensity), lightByte(Ambient.iG * rState.fAmbientIntensity), lightByte(Ambient.iB * rState.fAmbientIntensity));
    renderText(pFont, 10, 32, szLine);

    snprintf(szLine, sizeof(szLine), "Mouse light %.2f   P preset   A/Z ambient   I/K light   L lighting   O occluders   D debug", rState.fMouseIntensity);
    renderText(pFont, 10, 510, szLine);
    renderText(pFont, 10, 488, "Animated light: GLA_CANDLE; spotlight: above the segment, pointing down with shadow");
}

// Draw the tutorial frame for the current state.
static void renderFrame(Image* pBgImage, Font* pFont, TutorialState& rState)
{
    Main& mC64 = Main::instance();
    GFX& mGFX = mC64.gfx();

    if(pBgImage) pBgImage->render();
    renderSceneProps(mGFX);

    if(!renderLighting(mGFX, rState))
    {
        mGFX.rectFilled(10, 58, 330, 78, 160, 0, 0, 220);
        renderText(pFont, 14, 60, "Lightmap pass failed");
    }

    if(rState.bOccluders)
    {
        mGFX.rect(260, 205, 390, 295, 255, 80, 80, 210);
        mGFX.circle(610, 350, 56, 255, 80, 80, 210);
        mGFX.line(485, 130, 760, 260, 255, 80, 80, 210);
    }

    renderHUD(pFont, rState);
}

// Adapt the renderer to the engine callback signature.
static Sint32 renderWrapper(Sint32, void* pObj)
{
    TutorialState* pState = static_cast<TutorialState*>(pObj);
    if(!pState) return 0;

    Main& mC64 = Main::instance();
    Image* pBgImage = mC64.imageMgr().get(pState->idBgImage);
    Font* pFont = mC64.fontMgr().get(pState->idBuiltInFont);
    renderFrame(pBgImage, pFont, *pState);
    return 0;
}

// Show or hide the debug window.
static void toggleDebugWindow(DebugWindow* pDebug)
{
    if(!pDebug) return;
    if(pDebug->baseWidget().status() == GS_SHOWN) pDebug->baseWidget().hide();
    else pDebug->baseWidget().show();
}

// Run the tutorial application and release its resources.
int main(int argc, char* argv[])
{
    eConfigRendererDriver eRenderer = CRD_SOFTWARE;
    if(!runParameterReadRender(argc, argv, eRenderer)) return 1;

    CMem::setStatsLevel(CMem::MSL_NORMAL);
    atexit(CMem::destroy);

    Main& mC64 = Main::instance();
    Log& mLog = *mC64.logMgr().get();
    TutorialState state;

    mLog.init("Tutorial_11_Lightmap", LL_DEBUG, LM_FILE | LM_STDOUT, OUTPUTDIR"Tutorial_11_Lightmap.log");

    mLog.msg(LL_INFO, "\nSETUP: screen and timing\n");
    mLog.msg(LL_INFO, "  Initialize timer ... ");
    if(!mC64.timer().init())
    {
        logTaskFailed(mLog);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "  Set frame rates (render=%d, logic=%d) ... ", iRenderRate, iLogicRate);
    if(!mC64.timer().setRate(iRenderRate, iLogicRate))
    {
        logTaskFailed(mLog);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mC64.configMgr().setMTFriendly(1);

    Screen* pScreen = mC64.configMgr().get();
    pScreen->setSize(iScreenW, iScreenH);
    pScreen->setDriver(eRenderer);
    pScreen->setTitle("CRM64Pro - Tutorial 11: Lightmap");

    mLog.msg(LL_INFO, "  Create screen (%dx%d) ... ", iScreenW, iScreenH);
    if(pScreen->show() < 0)
    {
        mLog.msg(LL_CRITICAL, "FAILED\n");
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "  Set render callback ... ");
    if(!pScreen->setRenderCallback([&state](Sint32 iMode) { return renderWrapper(iMode, &state); }))
    {
        logTaskFailed(mLog);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "\nRESOURCES: load from CDC\n");
    mLog.msg(LL_INFO, "  Load background image from CDC ... ");
    state.idBgImage = mC64.imageMgr().load(OUTPUT_CDC, RESOURCE_BG_CDC_NAME);
    if(state.idBgImage < 0)
    {
        logTaskFailed(mLog, state.idBgImage);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "  Load cursor from CDC ... ");
    state.idCursor = mC64.cursorMgr().load(OUTPUT_CDC, RESOURCE_CURSOR_CDC_NAME);
    Cursor* pCursor = mC64.cursorMgr().get(state.idCursor);
    if(state.idCursor < 0 || pCursor == nullptr)
    {
        logTaskFailed(mLog, state.idCursor);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "  Select cursor ... ");
    if(mC64.cursorMgr().select(state.idCursor) < 0 || !mC64.cursorMgr().show())
    {
        logTaskFailed(mLog);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "  Load built-in font ... ");
    state.idBuiltInFont = mC64.fontMgr().getBuiltin("CourierNew10White");
    if(state.idBuiltInFont < 0 || mC64.fontMgr().get(state.idBuiltInFont) == nullptr)
    {
        logTaskFailed(mLog, state.idBuiltInFont);
        Main::terminate();
        return -1;
    }
    logTaskOk(mLog);

    mLog.msg(LL_INFO, "\nTOOLS: debug window and console\n");
    mLog.msg(LL_INFO, "  Create debug window ... ");
    state.idDebugWindow = mC64.guiMgr().create("Debug", CRM64PRO_GUI_DEBUGWINDOW);
    DebugWindow* pDebug = mC64.guiMgr().getDebugWindow(state.idDebugWindow);
    if(!pDebug)
    {
        logTaskFailed(mLog, state.idDebugWindow);
        Main::terminate();
        return -1;
    }
    pDebug->baseWidget().setPosition(Position(PH_RIGHT, -120), Position(PH_TOP, 10));
    pDebug->addWatch("Mouse X", nullptr, &state.fMouseX);
    pDebug->addWatch("Mouse Y", nullptr, &state.fMouseY);
    pDebug->addWatch("Ambient preset", &state.iAmbientPreset);
    pDebug->addWatch("Ambient intensity", nullptr, &state.fAmbientIntensity);
    pDebug->addWatch("Mouse light intensity", nullptr, &state.fMouseIntensity);
    pDebug->addWatch("Render fps", &state.iCurrentRenderRate);
    pDebug->addWatch("Logic fps", &state.iCurrentLogicRate);
    pDebug->addWatch("Logic frames", &state.iLogicFrames);
    pDebug->baseWidget().hide();
    logTaskOk(mLog);

    Console* pConsole = mC64.guiMgr().getConsole();
    if(pConsole) pConsole->print("Tutorial 11: Lightmap ready. Press ` to toggle the console.\n");

    mLog.msg(LL_INFO, "\nCONTROLS\n");
    mLog.msg(LL_INFO, "  [Q] / [ESC] Quit\n");
    mLog.msg(LL_INFO, "  [Mouse] Move warm point light\n");
    mLog.msg(LL_INFO, "  [L] Toggle lighting\n");
    mLog.msg(LL_INFO, "  [O] Toggle occluders\n");
    mLog.msg(LL_INFO, "  [P] Cycle ambient presets\n");
    mLog.msg(LL_INFO, "  [A] / [Z] Change ambient intensity\n");
    mLog.msg(LL_INFO, "  [I] / [K] Change mouse-light intensity\n");
    mLog.msg(LL_INFO, "  [D] Toggle debug window\n");
    mLog.msg(LL_INFO, "  [`] Toggle console\n");
    mLog.msg(LL_INFO, "\nRUNNING\n");

    SDL_Event event;
    bool bRunning = true;
    while(bRunning)
    {
        while(mC64.update(&event))
        {
            if(event.type == SDL_EVENT_QUIT)
            {
                bRunning = false;
            }
            else if(event.type == SDL_EVENT_KEY_DOWN)
            {
                if(event.key.key == SDLK_Q || event.key.key == SDLK_ESCAPE) bRunning = false;
                else if(event.key.key == SDLK_L) state.bLighting = !state.bLighting;
                else if(event.key.key == SDLK_O) state.bOccluders = !state.bOccluders;
                else if(event.key.key == SDLK_P)
                {
                    state.iAmbientPreset = (state.iAmbientPreset + 1) % iAmbientPresetCount;
                    state.fAmbientIntensity = vAmbientPresets[state.iAmbientPreset].fIntensity;
                }
                else if(event.key.key == SDLK_A)
                {
                    state.fAmbientIntensity += 0.05f;
                    if(state.fAmbientIntensity > 1.0f) state.fAmbientIntensity = 1.0f;
                }
                else if(event.key.key == SDLK_Z)
                {
                    state.fAmbientIntensity -= 0.05f;
                    if(state.fAmbientIntensity < 0.0f) state.fAmbientIntensity = 0.0f;
                }
                else if(event.key.key == SDLK_I)
                {
                    state.fMouseIntensity += 0.05f;
                    if(state.fMouseIntensity > 1.0f) state.fMouseIntensity = 1.0f;
                }
                else if(event.key.key == SDLK_K)
                {
                    state.fMouseIntensity -= 0.05f;
                    if(state.fMouseIntensity < 0.0f) state.fMouseIntensity = 0.0f;
                }
                else if(event.key.key == SDLK_D)
                {
                    toggleDebugWindow(pDebug);
                }
            }
        }

        if(!bRunning) break;
        state.fMouseX = mC64.cursorMgr().getX();
        state.fMouseY = mC64.cursorMgr().getY();
        state.iCurrentRenderRate = static_cast<Sint32>(mC64.timer().getCurrentRFR());
        state.iCurrentLogicRate = static_cast<Sint32>(mC64.timer().getCurrentLFR());
        updateLogic(state);
    }

    mC64.gfx().info();
    mLog.msg(LL_INFO, "\nCLEANUP\n");
    mLog.msg(LL_INFO, "  Close debug window ... ");
    mC64.guiMgr().close(state.idDebugWindow);
    logTaskOk(mLog);
    mLog.msg(LL_INFO, "  Close fonts ... ");
    mC64.fontMgr().close(0);
    logTaskOk(mLog);
    mLog.msg(LL_INFO, "  Close cursors ... ");
    mC64.cursorMgr().close(0);
    logTaskOk(mLog);
    mLog.msg(LL_INFO, "  Close images ... ");
    mC64.imageMgr().close(0);
    logTaskOk(mLog);
    mLog.msg(LL_INFO, "  Close CDC archives ... ");
    mC64.archiveMgr().close(0);
    logTaskOk(mLog);
    Main::terminate();

    return 0;
}

Navigation

Previous: Tutorial 10 - Particle effects

Back to the tutorials index

Next: Tutorial 12 - GUI
